| Leica DM IL Microscope with Three (3) Objectives |
|

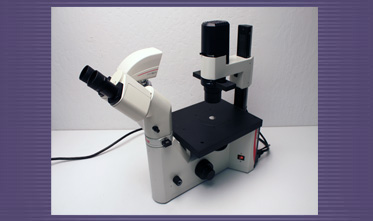

This previously-owned (used) Leica DM IL microscope, type DFC290 (12730080), comes with three (3) objectives and two (2) eyepieces, 10X/20 (S/Ns 527002 and 527003). There is an extra slot for a fourth objective (not included).
The objectives are as follows: - 0.17/D, N Plan, 40X/0.65, S/N 506020.
- N Plan (planachromat), 10x/0.22, S/N 506018.
- 0.17/C, HC (harmonic components) PL APO (planapochromat), 20X/0.70, S/N 506513.
This microscope also has the following parts and accessories:- c-Mount 0.55X video adapter, type DFC290 (12730080), S/N 301790908, 12V/400mA input, with two (2) ports.
- Lamp housing.
- Condenser, 0.35 S55, P/N 521 230.
- IMC slit diaphragm slide and IMC modulator, P/N 521234.
- Halogen display/optic lamp bulb (5 each).
- Operating instructions.
- Leica Camera software, V3.0. (Application Suite: sample archives, manuals, firecam V3.2.0 for Mac OSX 10.4/10.5, and Acrobat Reader), and LAS software V.3.0.0 (dated December 2007), for demo use.
Made in Germany
Condition: Very good condition, previously-owned, used. Sold as is without warranty expressed or implied. Buyer is responsible for determining the suitability of this product for their application.
|
 |
| Electrical Requirements: | U/100/115/230V, 50/60Hz. | | Dimensions: | 9W x 20D x 21-1/4H inches, including protrusions. | | Shipping Weight: | Dim Weight (approx. 27 lbs., including packaging). |
|
