Low height for easy accessing of parts inside autoclave.
Safety features / digital display / cooling fan.
Efficient sterilization and drying functions.
Automatic high pressure steam sterilization system.
Internal capacity of 2.8 cu. ft. or 80L (21 gallons).

  >> View More Photos
Home > Manufacturers > Yamato Autoclaves or Sterilizers

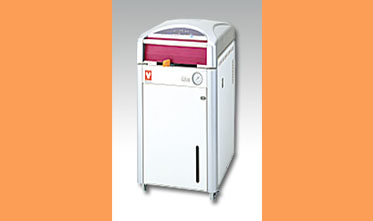

New Laboratory Autoclave - Yamato SQ810C - 2.8 cu. ft (80L or 21 gal.), Maximum 135°C Sterilizing Temperature, 200-240VAC

LabCommerce carries the Yamato Scientific product line of autoclaves. The Yamato SQ810C is ergonomically designed to enable easy accessing of parts inside the autoclave. It uses an automatic high-pressure steam sterilization system and it runs on 200V-240VAC and 10.5A-12.5A.

Internal capacity is 2.8 cu. ft. (80L or 21 gal.) and maximum working pressure is rated at 36 psi or 0.255 MPa. The temperature varies, depending on the application being used, i.e.:

  • 45-135°C: 45-60°C for preheating
  • 40-60°C for keep warm
  • 65-100°C for melting
  • 105-135°C for sterilization


Please see other technical specifications below.



Item Code: YAM-2447
Model: SQ810C
Manufacturer: Yamato
Availability: In-Stock
List Price: $13740.00
Selling Price: Call for Quote


Temperature Setting Range:Ambient Temperature: 5°C to 35°C.

Range of working temperatures: 45-135°C: 45-60°C for preheating, 40-60°C for keep warm, 65-100°C for melting, 105-135°C for sterilization.
Electrical Requirements:200-240VAC, 10.5A-12.5A, 50/60Hz, CE mark.
Maximum Operating Pressure:36 psi or 0.255 MPa.
Temperature Controller:PID control by microprocessor; digital setting.
Timer:0 or 1 minute to 99 hrs. 59 min.; 1-minute increments.
Capacity:2.8 cu. ft. (80 liters or 21 gallons).
Internal Dimensions (in inches):14.6 (inner diameter) x 29.5D inches.
Exterior Dimensions (in inches):20.5W x 26D x 45.7H (excludes protrusions).
Includes Accessories:3 racks, vapor cup, drain bottle, drainboard, filter.
Shipping Requirements:Approximately 345 lbs. (725 lbs. domestic dim weight with 48L x 48W x 61H-inch pallet). Please contact us for more information on shipping methods and rates. We will also need to know if your company needs a liftgate at delivery. The costs of shipping and insurance will be added to the invoice.


  Call us today for details.
